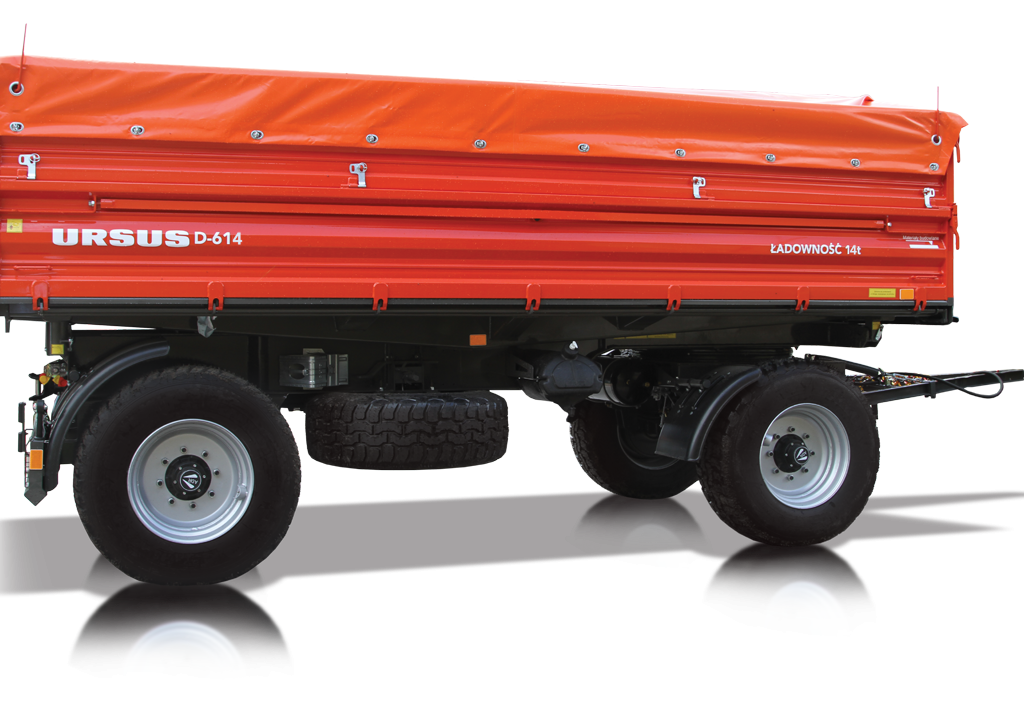

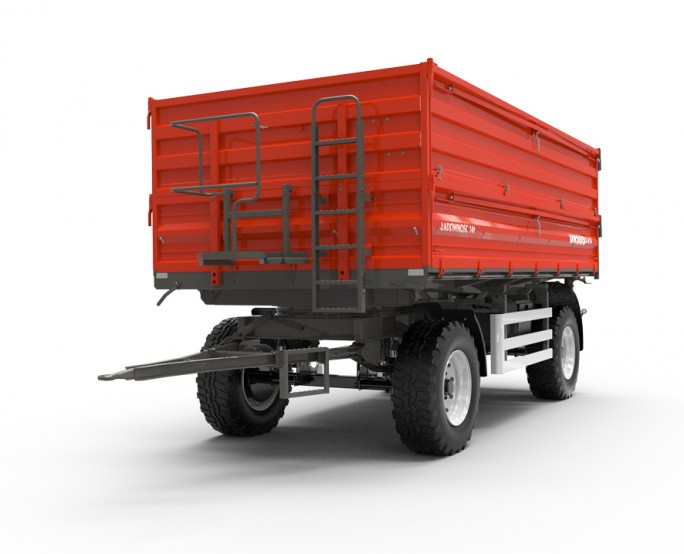

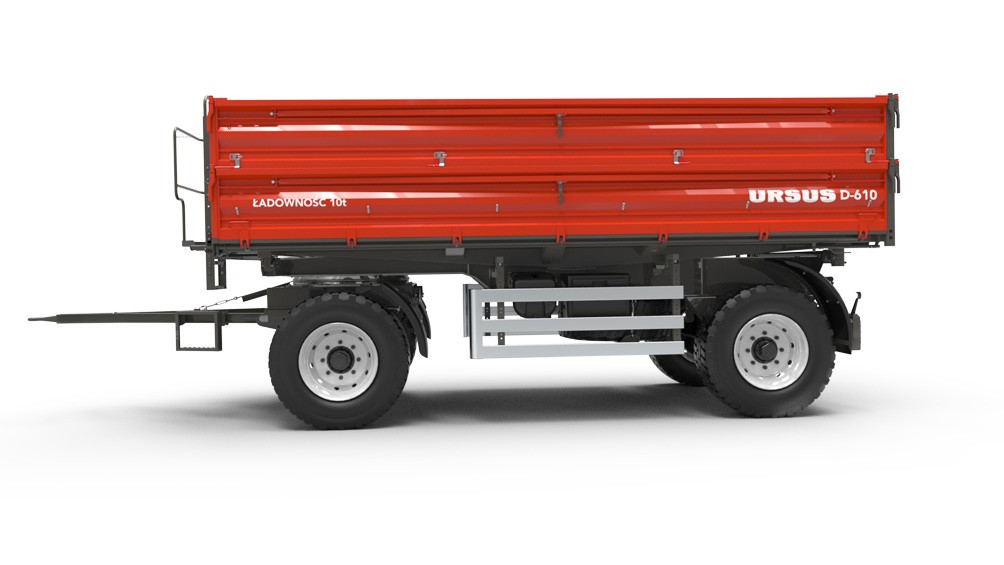

Two-axle agricultural trailers D-610, D-612, D-614 are designed for transporting agricultural products. Side and rear walls, with a centrally controlled opening / closing system, ensure fast trailer unloading. The 2.4 m wide loading platform allows the trailer to be used for euro pallet transportation. The trailers are provided with the rear hitch and couplings for attaching the second trailer. Upon request, they can be provided with a frame and canvas. The trailers are fully adapted to use on public roads with the speed of 40 km/h. Their solid design guarantees failure-free operation for many years.
Load capacity, t | up to 14 |
Required power, kW/HP | 80/109 |
Loading area, m² | 12,3 |
Capacity without extensions, m³ | 7,35 |
Length x width x height, mm | 7130/2550/2760-2860 |
Platform height from the ground, mm | 1330-1430 |
wheel track, mm | 1850 |
Unloading | three-sided |
Body type | dropside |
Load capacity, t |
up to 12 |
Required power, kW/HP |
65 / 88 |
Loading area, m² |
12,3 |
Capacity without extensions, m³ |
7,35 |
Length x width x height, mm |
7130/2550/2560-2760 |
Platform height from the ground, mm |
1330-1530 |
Wheel track, mm |
1850 |
Unloading |
three-sided |
Body type |
dropside |
Load capacity, t |
up to 10 |
Required power, kW/HP |
55 / 75 |
Loading area, m² |
12,3 |
Capacity without extensions, m³ |
6,15 |
Length x width x height, mm |
7130/2550/2360-2560 |
Platform height from the ground, mm |
1330-1530 |
Wheel track, mm |
1850 |
Unloading |
three-sided |
Body type |
dropside |
