Mounted fertilizer sprayers Agrola

The manufacturer offers a large range of mounted sprayers. You can choose from 400 and 600 series sprayers for small, or 800, 1000 and 1200 medium-sized farms. The sprayer booms fold hydraulically or manually.
VPR series sprayers are adapted to medium-sized farming and have higher efficiency pumps.

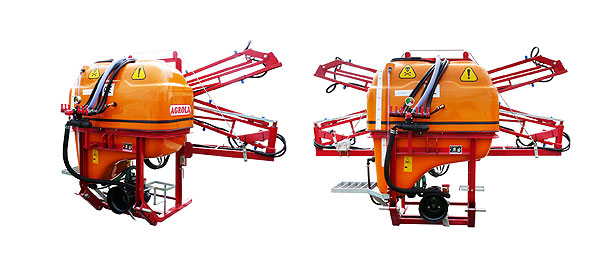

Agrola 400

The Agrola 400 series of sprayers are designed for small farms. The working width of the sprayer beam is 10 – 12 meters. The design of the sprayer and the components used in its production are of high quality.

Model		Agrola 400/10/X	Agrola 400/12/X
Type		P175/2	P175/3
Tank capacity, l		400
Tank type		Polyester
Sprayer beam type		X type foldable – manually
Working width, m		10	12
Beam reinforcement mechanism		Mechanical winch
Nozzle type		Single, with condensing valves, on flexible PVC pipe
Section number		3
Pump model		70 AG, max efficiency 72 l/min, max pressure 2 MPa
Dimensions, mm	Length, mm	1200	1200
	Width, mm	2200	2450
	Height, mm	1540	1540

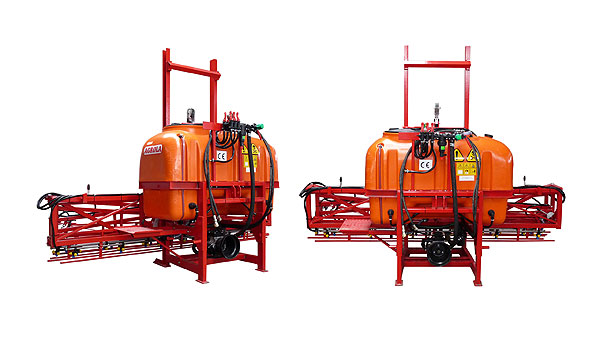

Agrola 600

The Agrola 600 series of sprayers is designed for medium-sized farms.

Model	Agrola 600	10/Z	12/Z	15/Z	18/Z	10/M	12/M	15/M	18/M
Tank capacity, l		600
Tank type		Polyethylene
Sprayer beam type		Foldable manually
Working width, m		10	12	15	18	10	12	15	18
Beam reinforcement mechanism		Hydraulic
Fittings with return valves		Insulated, set on an acid-resistant tube
		Triple, set on acid-resistant tube
Section number		3	3	5	5	3	3	5	5
		5	5			5	5
Pump model		115 AG, max efficiency 114 l/min, max pressure 2 MPa
Dimensions	Width with folded beams, mm	2800	2800	3000	3000	2800	2800	3000	3000
	Height, mm	2350

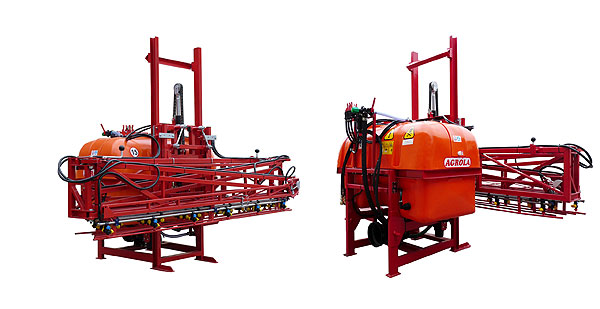

Agrola 800

The Agrola 800 sprayer range is designed for medium-sized farms.

Model	Agrola 800	10/X	12/X	12/Z	15/Z	18/Z	12/M	15/M	18/M
Tank capacity, l		800
Tank type		Polietilenas
Sprayer beam type		X type foldable		Foldable manually
Working width, m		10	12	12	15	18	12	15	18
Beam reinforcement mechanism		Mechanical winch		Hydraulic
Fittings with return valves		Isolated, set on a PVC pipe		Insulated, set on an acid-resistant tube
				Triple, set on acid-resistant tube
Section number		3			5
Pump model		135 AG, max efficiency 132 l/min, max pressure 2 MPa
Weight	Customized, kg	320	330	445	505	525	455	515	535
	Overall, kg	1135	1145	1260	1320	1340	1270	1330	1350
Dimensions	Width with folded beams, mm	2200	2450	2800	3000		2800	3000
	Height, mm	2350
Power requirement, HP		20

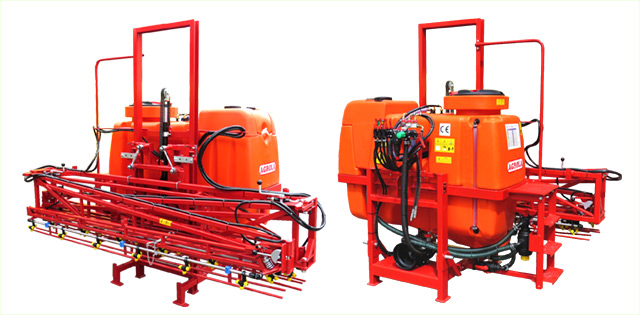

Agrola 800 VPR

Model		12/Z	15/Z	18/Z	12/M	15/M	18/M
Type		P131/1	P131/1	P131/3	P131/1	P131/2	P131/3
Tank capacity, l		800
Tank type		Polyethylene
Sprayer beam type		Foldable manually
Working width, m		12	15	18	12	15	18
Nozzles with condensing valves		Single, set on an acid-resistant tube			Triple, set on an acid-resistant tube
Section number		5
Diaphragm pump	MAke	Annovi Reverberi
	Model	AR 135
	Max efficiency	132 l/min
	Max pressure	20 bar
Fluid control type		Manual valve
		Manual valve, proportional to pressure compensation
		Seloidal valves with control panel
Transport dimensions, mm	Length	1650
	Width	2800	3000		2800	3000
	Height	2420

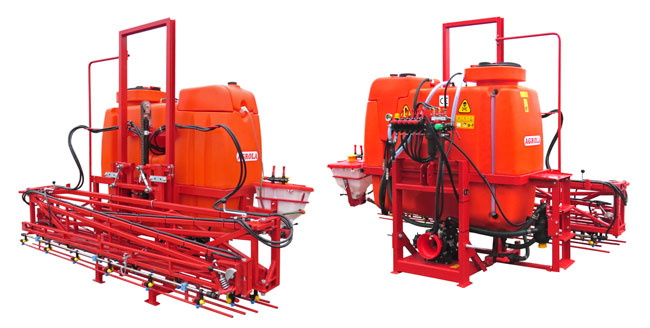

Agrola 1000 VPR

Model		12/Z	15/Z	18/Z	12/M	15/M	18/M
Type		P131/1	P131/1	P131/3	P131/1	P131/2	P131/3
Tank capacity, l		1000
Tank type		Polyethylene
Sprayer beam type		Foldable manually
Working width, m		12	15	18	12	15	18
Nozzles with condensing valves		Single, set on an acid-resistant tube			Triple, set on an acid-resistant tube
Section number		5
Diaphragm pump	Make	Annovi Reverberi
	Model	AR 135	AR 185		AR 135	AR 185
	Max efficiency	132 l/min	180 l/min		132 l/min	180 l/min
	Max pressure	20 bar
Fluid control type		Manual valve
		Manual valve, proportional to pressure compensation
		Seloidal valves with control panel
Transport dimensions, mm	Length	1650
	Width	2800	3000		2800	3000
	Height	2420
