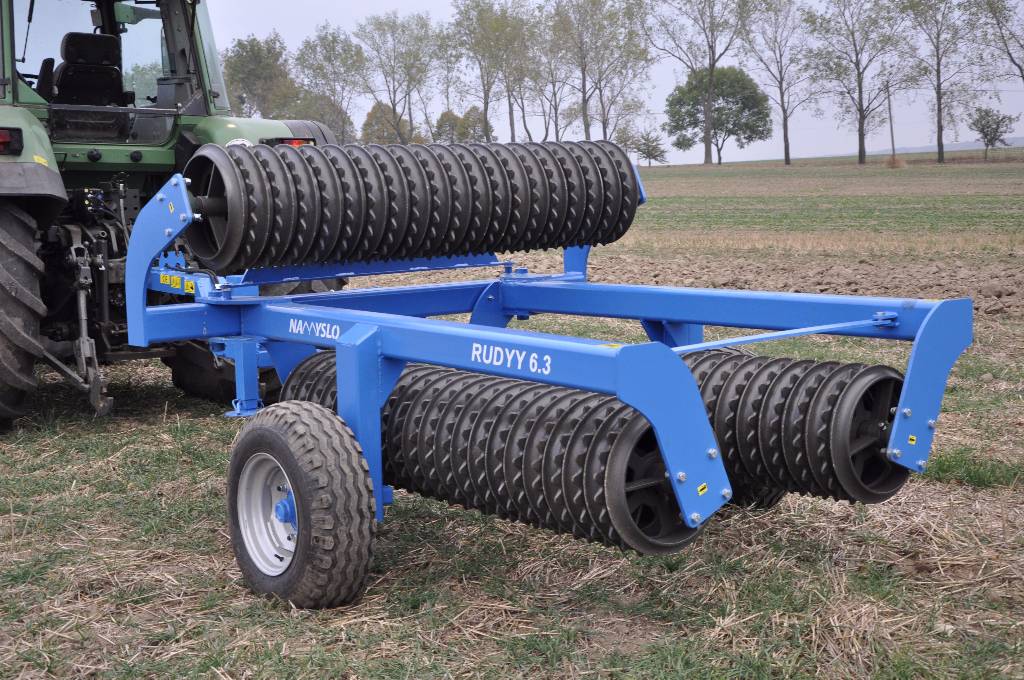

Single cylinder roller design, made of profiles with dimensions 140×140 mm, wall thickness 10 mm. The remaining components are made of 15 mm thick steel, making the frame more durable. In addition, the hardness of the steel used to make the roller is increased.
The roller comes with the following rings:
– Cambridge – used after sowing
– Campbell – used for compaction after plowing
– Crosskill – used for crushing crumbs in fields
| Technical data |
Ø450 mm |
Ø500 mm |
Ø530 mm |
Ø600 mm |
|
| Model |
Working width, m |
Number of rings/ Weight, kg/ Min tractor power, HP |
|||
| Tiger 45 |
4,5 |
87/2140/80 |
81/2515/80 |
87/2840/80 |
87/3135/80 |
| Tiger 54 |
5,4 |
101/2430/86 |
101/2785/86 |
105/3135/86 |
105/3490/86 |
| Tiger 62 |
6,2 |
123/2710/99 |
117/3000/99 |
123/3330/99 |
123/3710/99 |
| Tiger 75 |
7,5 |
149/3030/112 |
143/3400/112 |
149/3790/112 |
149/4280/112 |
| Tiger 80 |
8 |
157/3140/125 |
151/3550/125 |
157/3950/125 |
157/4470/125 |
| Tiger 90 |
9 |
– |
167/4030/140 |
177/4520/140 |
177/4770/140 |
The roller comes with the following rings:
– Cambridge – used after sowing
– Campbell – used for compaction after plowing
– Crosskill – used for crushing crumbs in fields
| Technical data |
Ø450 mm |
Ø500 mm |
Ø530 mm |
Ø600 mm |
|
| Model |
Working width, m |
Number of rings/ Weight, kg/ Min tractor power, HP |
|||
| Rudyy 45 |
4,5 |
87/1840/80 |
81/2214/80 |
87/252/80 |
87/2835/80 |
| Rudyy 54 |
5,4 |
101/2130/86 |
101/2848/86 |
105/2835/86 |
105/3186/86 |
| Rudyy 62 |
6,2 |
123/2410/99 |
117/2700/99 |
123/3030/99 |
123/3410/99 |
| Rudyy 75 |
7,5 |
149/2730/112 |
143/3100/112 |
149/3490/112 |
149/3980/112 |
| Rudyy 80 |
8 |
157/2840/125 |
151/3250/125 |
157/3650/125 |
157/4170/125 |
| Rudyy 90 |
9 |
– |
167/3730/140 |
177/4220/140 |
177/4470/140 |
