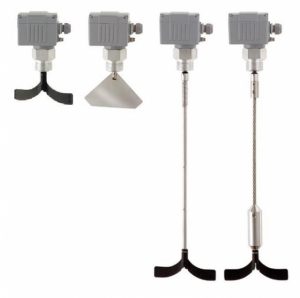

DF11 – Rotary level sensor
Most often used for full, empty, or set out grain level indication in the grain tower. Individual sensor configuration with several options and settings allows to adjust the sensor for different equipment.
The sensor is resistant to pressure, temperature, dust, and is moisture proof;
Adapted for the use in potentially explosive atmosphere;
Versatile – broad use potential;
Maximum length up to 2000 mm.
Reliable, easily maintained and mounted device.

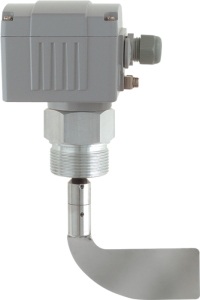

DF21; DF23 (reinforced axis) – Rotary level sensors
Most often used for full, empty, or set out grain level indication in the grain tower. Individual sensor configuration with several options and settings allows to adjust the sensor for different equipment.
The sensor is resistant to pressure, temperature, dust, and is moisture proof;
Adapted for the use in potentially explosive atmosphere;
Versatile – broad use potential;
Maximum length up to 1000 mm.
Reliable, easily maintained and installed devices.
DF24 (reinforced axle) – extended rotary level sensor
Most often used for full, empty, or set out grain level indication in the grain tower. Individual sensor configuration with several options and settings allows to adjust the sensor for different equipment.
Reliable, easily maintained and mounted device.
Perfectly suited for grain towers, which can accumulate moisture on the inner wall (due to a protective pipe, with a maximum length of 500 mm.)
The sensor is resistant to pressure, temperature, dust, materials generating electromagnetic fields and moisture;
Adapted for the use in potentially explosive atmosphere;
Versatile – broad use potential;
Maximum length up to 1.500 mm.
Reliable, easily maintained and mounted device.
DF25 – curved at 90º rotary level sensor
DF25 is an level sensor with an angular bar, designed for powdery products such as powders, granules (fine and coarse). DF25 can be used in different large volume warehouses where the sensor can accurately indicate minimal or maximum content level. That’s why it is used in many different industries.
Reliable, easily maintained and mounted device.
Perfectly suited for grain towers, which can accumulate moisture on the inner wall (due to a protective pipe, with a maximum length of 500 mm.)
The sensor is resistant to pressure, temperature, dust, materials generating electromagnetic fields and moisture;
Adapted for the use in potentially explosive atmosphere;
Versatile – broad use potential;
Maximum length up to 500 mm.

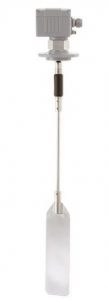

DF26 – rotary level sensor with an elongated bar protected by a rubber sleeve.
DF26 rotary sensor is usually used with hard powdery substances, which fully fill silos or containers. Individual sensor configuration with several options and settings allows to adjust the sensor for different equipment.
The maximum length 1500 mm
Reliable, easily maintained and mounted device.
Perfectly suited for grain towers, which can accumulate moisture on the inner wall (due to a protective pipe, with a maximum length of 500 mm.)
The sensor is resistant to pressure, temperature, dust, materials generating electromagnetic fields and moisture;
Adapted for the use in potentially explosive atmosphere;
Versatile – broad use potential;
DF27 – rotary level sensor suspended on a cable with a tensioning weight.
DF27 is a rotary sensor with a rope shaft designed to determine the level of powdery products (powder, granules, small and coarse grain) in grain towers.
The maximum shaft length is 10 000 mm.
Reliable, easily maintained and mounted device.
Perfectly suited for grain towers, which can accumulate moisture on the inner wall (due to a protective pipe, with a maximum length of 500 mm.)
The sensor is resistant to pressure, temperature, dust, materials generating electromagnetic fields and moisture;
Adapted for the use in potentially explosive atmosphere;
Versatile – broad use potential;
DF28 – rotary level sensor with an axis protective tube.
This sensor is usually used to indicate full or set level of grain in a grain tower. Protective pipe up to 6 000 mm in length designed for high lateral loads. An extra part and an O-ring at the end of the pipe prevents dust accumulation inside of the pipe and mount it in any position.
Reliable, easily maintained and mounted device.
Perfectly suited for grain towers, which can accumulate moisture on the inner wall (due to a protective pipe, with a maximum length of 500 mm.)
The sensor is resistant to pressure, temperature, dust, materials generating electromagnetic fields and moisture;
Adapted for the use in potentially explosive atmosphere;
Versatile – broad use potential;
