We offer a complete feed delivery system for your pig or poultry farm from the US manufacturer Hog Slat. Whether you need to replace the loader, supply line tube, screw conveyor, drip adapter, or extend the supply line, you can rely on the quality of the Hog Slat feed system parts. This system will serve your farm for a long time and will help increase productivity.
|
Model |
Tube diameter |
Capacity kg/min |
Motor sizing g/kW |
Max system length |
Max extension length |
|
55 |
55 mm |
7 |
0,25 |
45 m |
56 m |
|
0,37 |
76 m |
86 m |
|||
|
75 |
75 mm |
23 |
0,37 |
24 m |
38 m |
|
0,56 |
45 m |
56 m |
|||
|
0,75 |
61 m |
75 m |
|||
|
90 |
90 mm |
45 |
0,37 |
9 m |
19 m |
|
0,56 |
27 m |
38 m |
|||
|
0,75 |
45 m |
56 m |
* – Also available with a 125 mm diameter pipe.

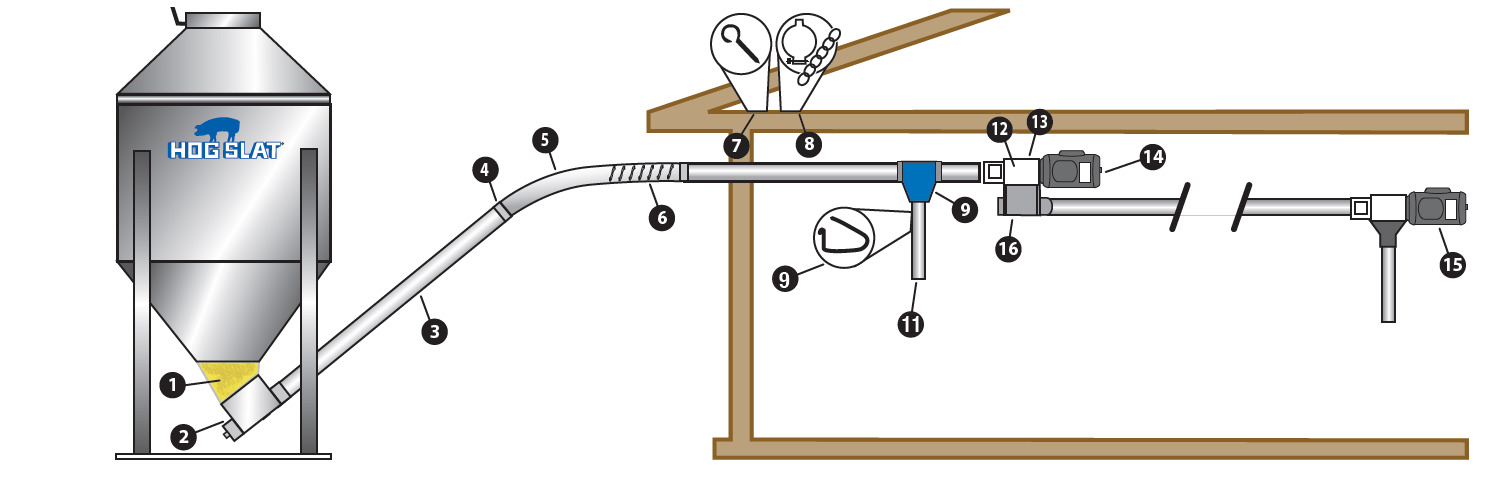

1. Clear boots
A simple glance will alert you to potential problems with feed delivery. Injection molded of impact-resistant clear polycarbonate.
2. Unloader kits
A single unloader with anchor bearings and transfer plate.
3. Straight 3 m PVC pipe with socket
| Diameter | Wall thickness |
| 55 mm | 2,5 mm |
| 75 mm | 3,25 mm |
| 90 mm | 3,5 mm |
4. PVC tube coupler
| Diameter |
| 55 mm |
| 75 mm |
| 90 mm |
5. 45° PVC elbow with socket
| Diameter | Wall thickness |
| 55 mm | 2,5 mm |
| 75 mm | 3,25 mm |
| 90 mm | 3,5 mm |
6. “Grow-Flex” auger
The innovative production process produces a stronger, more durable screw conveyor with greater flexibility and resistance.
7. Cup hooks
6,35 x 88,9 mm galvanized
6,35 x 88,9 mm
8. Chain and EMT clamp
Zinc coated chain
Zinc coated clamp
9. Wire pin
10,2 cm long, for attaching drop tubes
10. Drop adaptors
100% feed drop out
Secure hose clamp connections with overlapping seams to prevent water entry
Made of wear resistant nylon

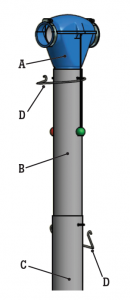

11. Drop tube
A – Drop tube adaptor
B – Top drop tube, transparent PVC
C – Bottom drop tube, transparent PVC
D – Wire pin

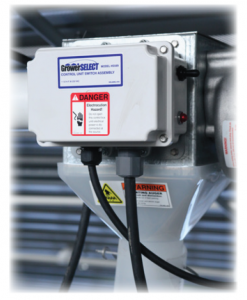

12. Control unit
230 volt unit for all models. Includes drop cone.
13. Direct driver and tube anchor
14. Direct drive power unit
a) 256 rpm
b) 352 rpm
“Grower Select“ power units come complete with motor, gear head, pinion, 92 cm pigtail cord and 440 ml bottle of gear oil. All power units are 115/208-230 volt.
15. Extension unloader kits
Single unloader kits with anchor bearings and control unit adaptor
